What Need You Know While Choosing Shale Shaker?

2014-08-20

Shale Shaker separates solids from liquids by utilizing a vibrating basket, that might be outfitted with specially-designed and -sized screens. Shaker is regarded primarily essentially one of the most necessary tool for removing drilled solids. These units take away the majority of drilled solids generated through the widespread drilling course of action. Shale shakers normally create involving 5 to more than eight G-forces of energy for removing solids in the mud plan.

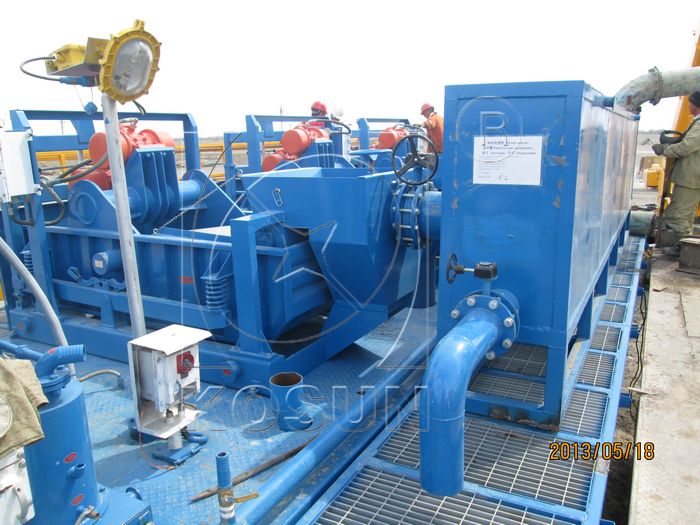

Drilling Fluids Shale Shaker in Working Field


As we know, drilling fluids shale shaker is the first stage solids control equipment in the mud cleaning system, also it is the obbligatory equipment of the whole drilling. So the function of it directly influences the whole drilling mud system, now let me introduce you two quality shale shakers. KOSUN shale shaker offers an ideal combination of high efficiency, flexibility, space optimization and longer service time. It can adapt quickly as drilling conditions and cuttings volumes change, creating lower waste volumes, costs, downtime and environmental footprint.


The following features are what you should know while selecting shale shaker:

1. Structure is optimized with less quick-wear parts, compact and modular form can meet tight-space requirements.

2. Fully seam welded,heat treatment on complete shaker basket and base.

3. Fitted with high strength coil or rubber isolator spring, it results in consistent vibration isolation with variable loading.

4. Shaker surface is painted with heavy anticorrosive marine coatings, completely following sand blasting and paint spraying process, having superb anti-corrosion properties, fast colours and high gloss.

5. Vibratory motion driving G-force in 7.5 G’s producing drier cuttings discharge and improved separation efficiency.

6. Feeder can present fluid to the scalping screens as a uniform, low-impact curtain, utilizing all available screen area, regardless of drilling conditions.

7. Spare parts and consumables have been designed to ensure the lowest replacement cost and long-term product durability.

8. Screen mesh is up to API standard. Also, replacement of pre-tensioned composite screen is made easy using our wedge block technology with limited downtime.

9. Leaving the useful bentonite & barite particles in suspension for re-use, dramatically reducing disposal costs.

10. Ultra-tight seal between screen and screen bed eliminates solids buildup and costly bypass of solids.

11. Electric control system is designed explosion-proof, conforming to the standard of IEC ExdⅡBT4, thus creating safe operation environment.

12. By using readily available electrical components and standard fastening assemblies, maintenance concerns are eliminated.

13. Deck angle adjusting device is reliable mechanical jack. Bilateral angle can be adjusted from –1 to +5 degrees during operation.

14. All HEAVY shakers are available for integration with existing rig assets. All shakers can be mounted two or three together on a common crosser for easier transportation and installation.

15. Rugged construction and corrosion-resistant materials provide long service life and low maintenance costs in the toughest oilfield environments.


In China solids control industry, KOSUN is a solids control leader and expert in drilling waste management. KOSUN is capable of providing customers with such four series as oil & gas drilling solids control equipment, centrifuge, drilling waste treatment equipment and drilling security equipment, including 25 categories of products, such as shale shaker, decanter centrifuge, shale shaker screen, desander, desilter, vacuum degasser, centrifugal pump,vertical centrifuge, submersible slurry pump, shear pump, mud agitator, mud gun, drilling fluid mud cleaner, jet mud mixer, screw pump, mud tank, diesel tank, water tank, complete solids control system, etc.
